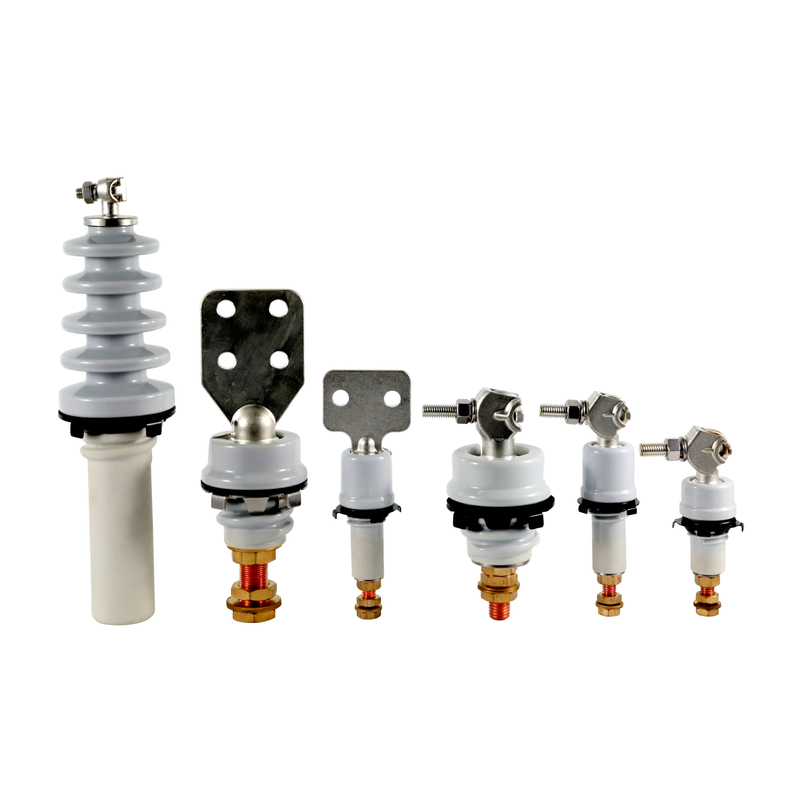

1.2kV 417A 800A 1200A ANSI Standard Porcelain Transformer Bushing with 4 Holes Spade

Rated Voltage: 1.2kV
Material: Porcelain
Creepage Distance ≥50mm
Lighting Impulse withstand Voltage: 24kV
Power-frequency withstand voltage (Dry): 8kV
The Threaded Bushings for voltage of 1.2kV are supplied assembled with the respective porcelain, NBR gaskets, copper threaded rod, blued steel spin grip nut, zinc-plated brass connector and stainless steel lock washer and nut.

Rated Current:	417A 800A 1200A
Availability:

Quantity:



Inquire Add to Basket

Model:
1.2kV
Brand:
NJREC

Transformer Bushing ANSI Bushing Porcelain Bushing spade bushing Bushing with 4 Holes Spade 1.2kv Bushing 417A Bushing 800A bushing 1200A bushing 4 hole spade bushing

Product Parameters

Voltage	Current	Specifications	Connector size & type	Voltage	Current	Specifications	Connector size & type
1.2KV	125A	3/8" - 16	5/8" EYEBOLT	1.2KV	630A	Cu 3/4"	/
1.2KV	125A	3/8" - 16	13/16" EYEBOLT	1.2KV	800A	Cu 1"	/
1.2KV	125A	3/8" - 16	20MM EYEBOLT/FLAT	1.2KV	800A	1" - 14	15/16" EYEBOLT
1.2KV	125A	3/8" - 16	13/16" EYEBOLT/FLAT	1.2KV	800A	1" - 14	1 1/4" DOUBLE EYEBOLT
1.2KV	208A	1/2" - 13	13/16" DOUBLE EYEBOLT	1.2KV	1000A	Cu 1-1/4"	/
1.2KV	208A	1/2" - 13	13/16" EYEBOLT	1.2KV	1250A	Cu 3/8"	/
1.2KV	250A	Cu 1/2"	/	1.2KV	1250A	Cu 3/8"	/
1.2KV	250A	Cu 1/2"	/	1.2KV	1250A	Cu 7/16"	/
1.2KV	250A	Cu 1/2"	/	1.2KV	1250A	Cu 7/16"	/
1.2KV	417A	5/8" - 11	15/16" EYEBOLT	1.2KV	1500A	Cu 1-3/8"	/
1.2KV	417A	5/8" - 11	1 1/4" DOUBLE EYEBOLT	1.2KV	2000A	Cu 1-3/4"	/
1.2KV	420A	Cu 5/8"		1.2KV	3150A	Cu 2"	/
1.2KV	600A	3/4" - 10	15/16" EYEBOLT	1.2KV	4000A	Cu 2"	/
1.2KV	600A	3/4" - 10	1 1/4" DOUBLE EYEBOLT	1.2KV	1250A	3/8" - 16	13/16" DOUBLE EYEBOLT

Product Application

application1

application3

NJREC GROUP has already exported to North America, South America, Australia, Southeast Asia, Africa, Europe and 50 other countries and regions. Transformer Bushings and Insulators manufactured by NJREC correspond to the international standards as referred to their quality and are in the market at the most competitive prices.
