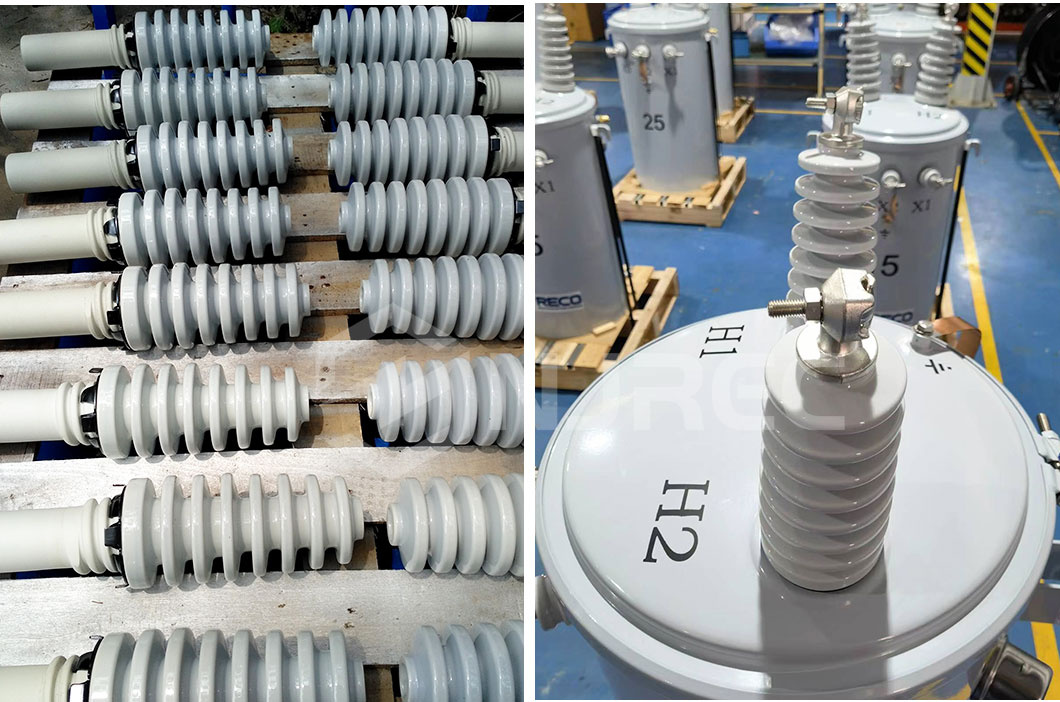

ANSI Transformer Bushing

The Threaded Bushings for voltage of 1.2kV are supplied assembled with the respective porcelain, NBR gaskets, copper threaded rod, blued steel spin grip nut, zinc-plated brass connector and stainless steel lock washer and nut.

Availability:

Quantity:



Inquire Add to Basket

Product Parameters

Voltage	Current	Specifications	Connector size & type	Voltage	Current	Specifications	Connector size & type
1.2KV	125A	3/8" - 16	5/8" EYEBOLT	1.2KV	630A	Cu 3/4"	/
1.2KV	125A	3/8" - 16	13/16" EYEBOLT	1.2KV	800A	Cu 1"	/
1.2KV	125A	3/8" - 16	20MM EYEBOLT/FLAT	1.2KV	800A	1" - 14	15/16" EYEBOLT
1.2KV	125A	3/8" - 16	13/16" EYEBOLT/FLAT	1.2KV	800A	1" - 14	1 1/4" DOUBLE EYEBOLT
1.2KV	208A	1/2" - 13	13/16" DOUBLE EYEBOLT	1.2KV	1000A	Cu 1-1/4"	/
1.2KV	208A	1/2" - 13	13/16" EYEBOLT	1.2KV	1250A	Cu 3/8"	/
1.2KV	250A	Cu 1/2"	/	1.2KV	1250A	Cu 3/8"	/
1.2KV	250A	Cu 1/2"	/	1.2KV	1250A	Cu 7/16"	/
1.2KV	250A	Cu 1/2"	/	1.2KV	1250A	Cu 7/16"	/
1.2KV	417A	5/8" - 11	15/16" EYEBOLT	1.2KV	1500A	Cu 1-3/8"	/
1.2KV	417A	5/8" - 11	1 1/4" DOUBLE EYEBOLT	1.2KV	2000A	Cu 1-3/4"	/
1.2KV	420A	Cu 5/8"		1.2KV	3150A	Cu 2"	/
1.2KV	600A	3/4" - 10	15/16" EYEBOLT	1.2KV	4000A	Cu 2"	/
1.2KV	600A	3/4" - 10	1 1/4" DOUBLE EYEBOLT	1.2KV	1250A	3/8" - 16	13/16" DOUBLE EYEBOLT

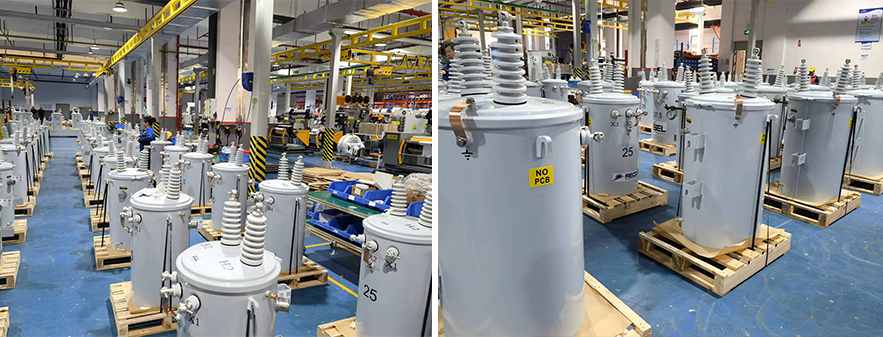

Applications

NJREC GROUP has already exported to North America, South America, Australia, Southeast Asia, Africa, Europe and 50 other countries and regions. Transformer Bushings and Insulators manufactured by NJREC correspond to the international standards as referred to their quality and are in the market at the most competitive prices.

Certificate

NJREC has built a good reputation for high quality products, timely delivery and responsive customer service. And has kept its development process, considering his responsibilities and missions about being one of the esteemed and respectful companies in the transformer bushing, transmission line and substation industry.

FAQ

Q1. What's the payment term ?

A. T/T and L/C is acceptable and TT will be more appreciated. 30% deposit, 70% balance against B/L copy.Or 100% irrevocable LC at sight.

Q2. How to buy your ideal products?

A. You can provide us with your drawings with specifications, we will produce as per your drawing.Or we can design as your requirements if you do not have a clear plan.

Q3. What is your Packing/Package ?

A. Standard export packing or Customized packing as your request.

Q4. Would you accept to use our logo ?

A. OEM/ODM can be acceptable.

Q5. What kind of certificate you have ?

A. Our company already achieve ISO9001 certificates and we have test reports.

Q6. What else can I do for you?

A. Our salesmen will reply your inquiry within 24 hours. We can give you any support on the technique & other aspects.
